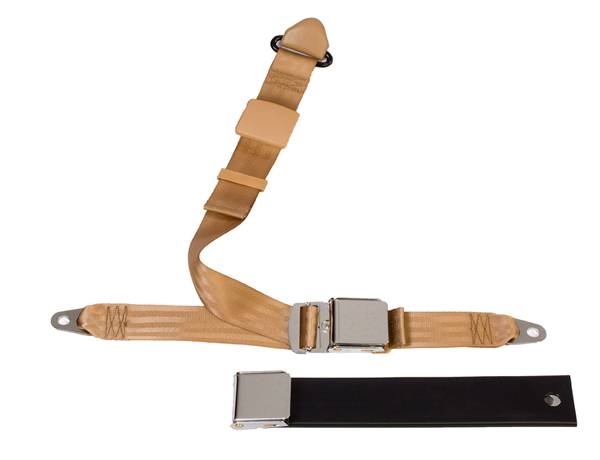

Non-Retractable 3 Point Lap/Shoulder Belt with Lift Latch Buckle

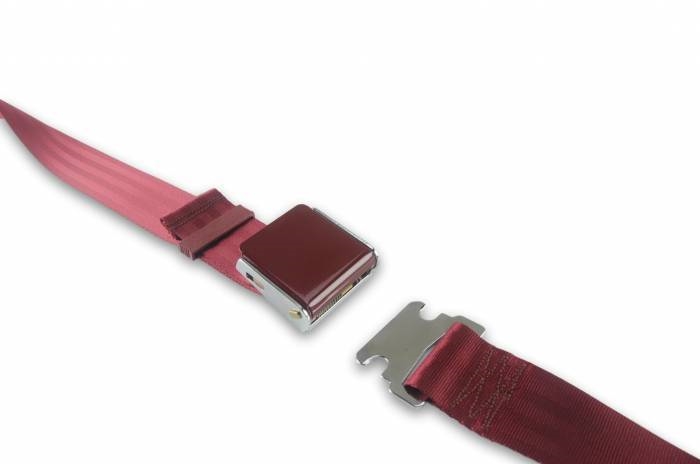

Classic Lift Latch Style

• Please see our Measuring Guide BELOW to determine the correct size.

• Easy to install 3 point non-retractable seat belt for front or rear seat applications
• 20” adjustable buckle length for bench or 12" flat black sleeved buckle for bucket seats
• Shoulder loop mount includes the shoulder bolt hardware

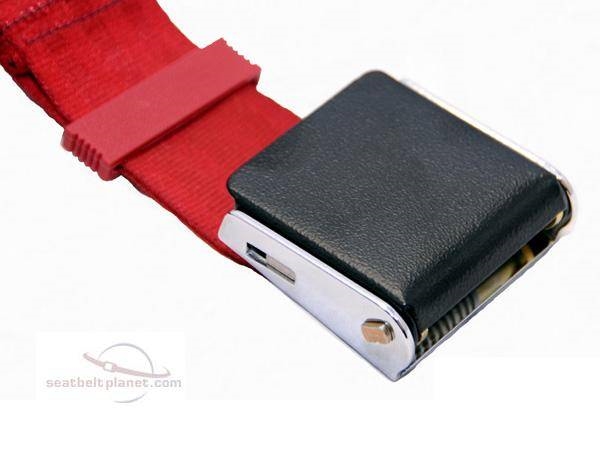

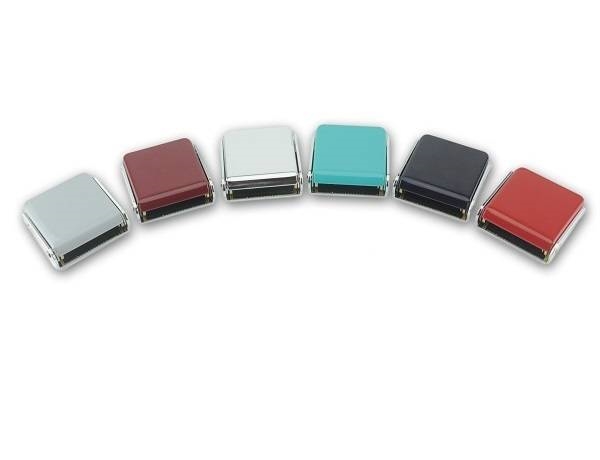

• Choose a Black Hammertone powder coated buckle option
• Meets Federal Motor Vehicles Safety Standards 209 & 302
• Our seat belts are sold individually for one person only
• Proper mounting hardware kit #2 also available for bolt on anchors.
• Proper mounting hardware kit #5 also available for snap hooks anchors.
• Our floor anchor points have a 0.510" hole that will accommodate a 7/16", 1/2" or 12mm bolt

• Dual adjustment at shoulder and lap positions.

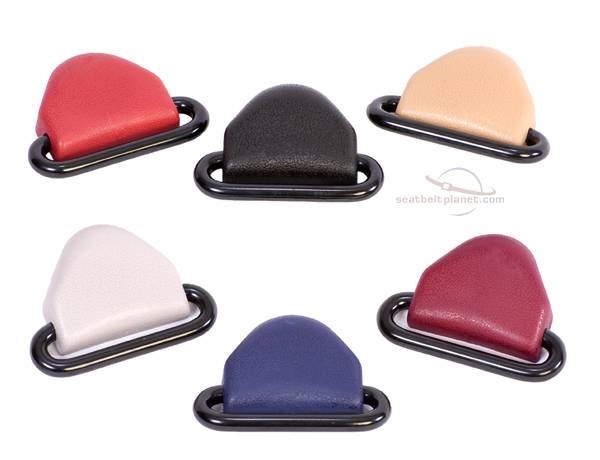

• Matching colored components for the below webbing colors (all others will have black):
  • Red plastics on Red, Flame Red, Maroon, Red Wine,
  • Tan plastics on Tan, Desert Tan, Medium Beige, and Camel
  • Dark blue plastics on Navy
  • Gray plastics on Grey and Silver
• Thread:
  • Matching thread colors on: Red, Flame Red, Maroon, Red Wine, Wine & Roses, Tan, Desert Tan, Med Beige, Navy, Powder Blue, Cobalt, Grey and Silver.
  • White Thread on: Wysteria, Lime Green, Orange, Ivory and White
  • Black thread on all others

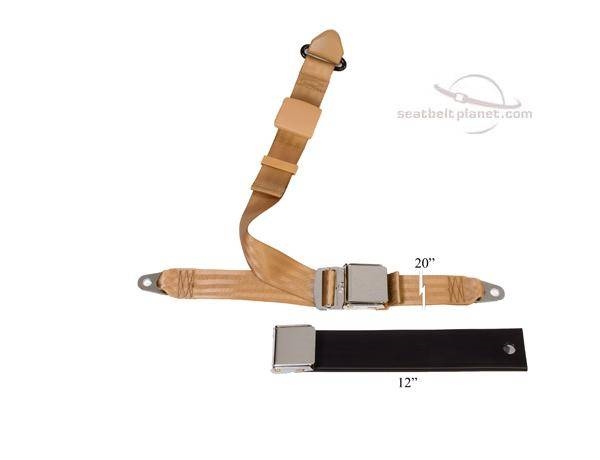

• Belt Lengths
• • 12" sleeved buckle-side / 93" tongue-side
  • 20" fixed buckle-side / 95" tongue-side
• All seat belts produced with Clear Zinc plated end fittings.
• Male & female sides are measured from center of mounting hole to end of female buckle
• All seat belt measurements have a +/- 1" tolerance
